Hot Glue Carton Wrapping Machine

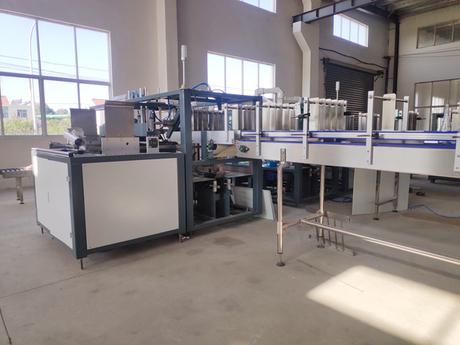

WS-20Z paper carton wrapping machine is used to pack plastic container with paper carton. It contains carton loading system, carton feeding system, container inlet unit, dropping station, carton forming station, gluing system, etc., the speed of WS-20Z is 18-20 cartons per minute. It is widely used in secondary packaging line of food and beverage bottling manufacturers.

Performance characteristics

• Adopting the falling packaging method: the floor space is small, the equipment investment cost is reduced, the international advanced design concept is adopted, the structure is more advanced and reasonable, the movement is lighter and smoother, and the power consumption is also smaller.

• Using Schneider touch screen operation, parameter adjustment on the man-machine interface, easy to adjust, can display production speed, fault cause and location, high degree of automation.

• Using Schneider PLC and Schneider inverter to achieve automatic control, precise position control and stepless speed regulation, and has fast communication capability and powerful diagnostic functions to ensure system reliability. The operation is convenient, the structure is compact and reasonable, and the degree of automation is high.

• Using AIRTAC cylinders, reliable quality, performance, can meet high strength, long hours of work.

• Most electrical components are well-known brands in Europe, with stable and efficient performance.

Main technical parameters

1. Packing speed: 18-20 boxes / minute

2. Cardboard form:

Cardboard form: pre-cut flat cardboard

Cardboard table: horizontal

3. Power / voltage power:

Power supply: 3phase, 5Line, 380V 50HZ

Power: 8KW

Control voltage: DC24V

4. Gas source:

Pressure: 0.6~0.8Mpa (oil free and water free);

Air consumption: 100NL/min

Air pipe connecting: ф16mm

5. Equipment color, size and weight

Machine color: light gray

Machine size: L=6450mm, W=2700mm, H=2150mm

Machine weight:2800kg

6. Conveyor belt interface height

Feeding conveyor line height: 1250mm ± 30mm

Out of the box conveyor line height 720mm ± 30mm

7. Packaging production information:

Min. size: 240mm*165mm*110mm (L*W*H)

Max. size: 400mm*300mm*320mm (L*W*H)

8. Environmental conditions:

Ambient temperature: 10 °C~40 °C

Max. Humidity: 30-70%

9. Working noise: less than 85Db

10. Requirement of raw material:

Paper carton: Outside surface of Kraft paper: 120 ~ 180g/m²

The inner surface Kraft paper: 130~ 150g/m²

Groove: Mixed chemical glue (+/- 120g/m²)

Hot glue: Melting point: 120 degrees

Celsius-Interval: 1 ~ 2 seconds

Setting time: 1 ~ 2 seconds

Working temperature: 150 ° C ~ 180 ° C

MAIN configuration

 (Note: Due to equipment upgrade or non-standard requirements, some electrical parts will be replaced with the same brand products, subject to the project equipment configuration)
