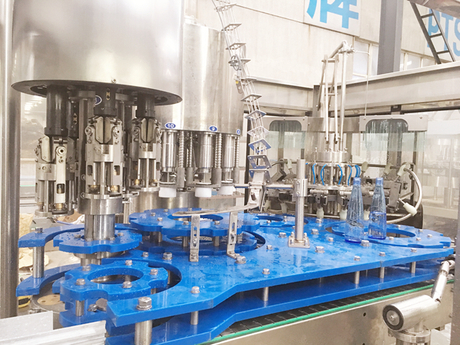

Natural Artesian Water Packaging Machine

GXGF50-50-15 liquid filling machine is used to fill water into glass bottle, it is also used to fill edible oil, vinegar, the filling speed is from 19000BPH to 20000BPH, based on 500ml volume bottle. It has washing unit, filling unit, capping unit and controlling system. The capping system is suitable for plastic screw cap, crown cap, ROPP cap and pull-up cap, which are popular in glass bottle packaging. It is widely used in food and beverage manufacturing plant.

Feature:

l  There are some features such as compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.

l  All of parts directly contacted with material are adopted with food stage stainless steel without dead angle. So they can be cleaned easily.

l  Adopting pneumatically actuated butterfly valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.

l  The opening valve mechanism is drived by the cylinder. According to the bottle signal, it opens timely, exactly and reliably.

l  High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

l  Carried perfect CIP control loop and program and cleaning devices on the spot.

l  Adopting efficient cap settling system, it is carried perfect cap feeding and protection device

l  It is adopted spiral descent mode for the support plate of bottom of bottle at the outlet thumb wheel. For exchanging model of bottle, it is not necessary to adjust the input height.

l  Carried the perfect protection system to overload, it can be used to protect facilities and operators efficiently.

l  Because of applying touch screen for operation, it is possible to realize man & machine conversation whereas the status of device running is clear at a glance.

l  The primary electric components such as touch screen\PLC\transducer etc. are adopted with well known import products.

l  All of these air control components are adopted with well known import products.

Main configuration:
